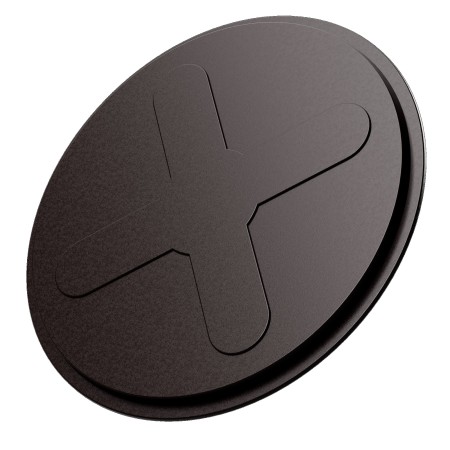

X-21 2.4 — front view
zoom_out_map
chevron_left chevron_right

X-21 2.4

TrueRC X-21 2.4 — a 21 dBic circular polarized panel antenna designed for UAV C2 links, long-range wireless networks and professional applications. 607mm dia., weather-resistant, 6× 1/4-20 mounting studs, N-female connector.

  • RHCP
  • LHCP

$1,000.00

1000 Tax excluded

new_releases On backorder
X-21 2.4 — front view
X-21 2.4 View all variants
1000 Tax excl.
new_releases On backorder
Description

TrueRC X-21 2.4 is a high-performance circular polarized directional antenna designed to minimize side lobes and maximize main beam coverage. 21 dBic gain at 2.4GHz in a weather-resistant, UV-stable construction. Suitable for UAV and drone communication links, long-distance wireless networks (Wi-Fi, ISM, custom RF bands), and research, industrial and defense communications.

Specifications
  • Frequency: 2100–2500MHz
  • Gain @2400MHz: 21 dBic
  • Gain @2100MHz: 15.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width @-3dB:** 15°
  • Connector: N-female
  • Max CW Power: 300W
  • Dimensions: 607mm dia. × 32.5mm
  • Weight: 2.35kg
  • Mounting: 6× 1/4-20 studs
Data sheet
0608597256833
0608597256062
Frequency (GHz)
2.2
2.4
Type of polarization
Circular polarization
Connector
SMA
