$324.99
chevron_left
chevron_right

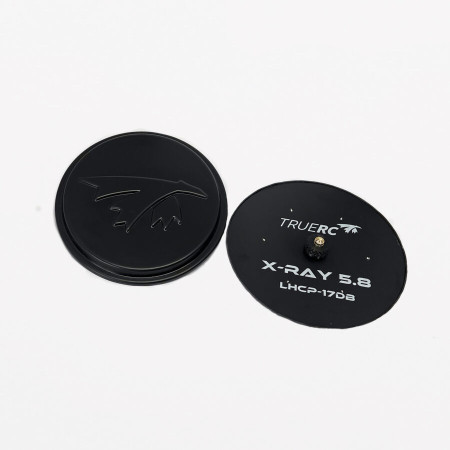

X-RAY 5.8
The X-RAY 5.8 is TrueRC's highest-gain panel antenna — a single-feed format with very low side lobes and up to 18 dBic gain. Maximizes main lobe efficiency for extreme long-range FPV and UAV links.
Description
The X-RAY 5.8 is a development of TrueRC's X-AIR technology in a single-feed panel format. Very low side lobes and excellent front-to-back ratio maximize main lobe efficiency. Achieving up to 18 dBic over a single element in a clean and thin form factor, the X-RAY is the physical expression of TrueRC's design philosophy.
Specifications
- Frequency: 5.4–6GHz
- Gain: 17–18 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 60°
- Beam-width @-3dB**: 24°
- Connector: SMA
- Dimensions: 151mm dia. × 20mm
- Weight: 82g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597254228
0608597254228
- Frequency (GHz)
- 5.8
- Type of polarization
- Circular polarization
- Connector
- SMA
