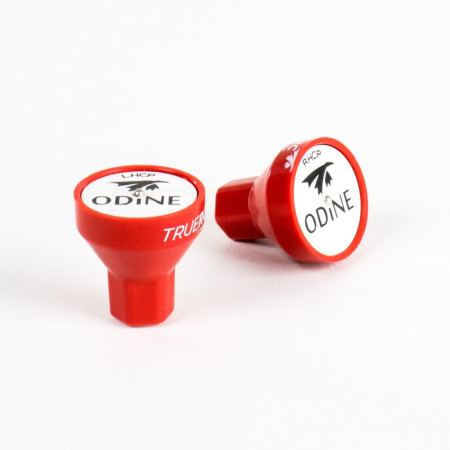

ODiNE 5.8 SMA - top view
zoom_out_map
chevron_left chevron_right

ODiNE 5.8

The TrueRC ODiNE 5.8 is a compact pagoda-inspired FPV antenna with 1.5dBic gain and 98% radiation efficiency. Its polycarbonate case is an integral part of the RF design — delivering pagoda-class performance in a stubby form factor.

  • RHCP
  • LHCP

$8.99

8.99 Tax excluded

notifications_active Last items in stock
ODiNE 5.8 SMA - top view
ODiNE 5.8 View all variants
8.99 Tax excl.
notifications_active Last items in stock
Description

ODiNE 5.8 — Compact Pagoda-Style FPV Antenna

The TrueRC ODiNE stems from the Pagoda antenna architecture, re-engineered into a much more compact form with maximized efficiency. The strong polycarbonate case is an inherent part of the RF design — microwave-grade PCBs and their shell work together to deliver full Pagoda-class performance in a stubby antenna.

With 1.5dBic gain and 98% radiation efficiency, the ODiNE offers exceptional signal clarity in an ultra-compact SMA package.

Specifications
  • Bandwidth: 5.6–6.0GHz
  • Gain: 1.5dBic
  • Radiation Efficiency: 98%
  • Weight: 5.4g
  • Dimensions: D:23mm × H:24mm
  • Connector: SMA
Data sheet
0608597251777
0608597251777
Frequency (GHz)
5.8
Type of polarization
Circular polarization
