CORE 5.8 - Side feed

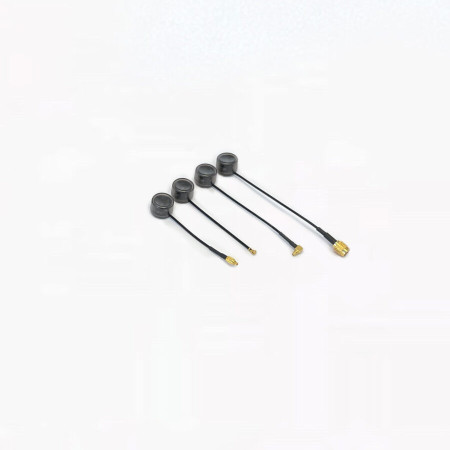

CORE 5.8 Side Feed — special version with side-exit cable, ideal for burying inside an airplane wing or fuselage. Durable polycarbonate housing, excellent axial ratio, 1.9 dBic gain.

  • RHCP
  • LHCP
  • MMCX90 side feed 85mm
  • SMA side feed 100mm
  • MMCX side feed 85mm
  • U.FL side feed 85mm
  • U.FL side feed 205mm

$14.99

14.99 Tax excluded

check In stock
CORE 5.8 - Side feed
CORE 5.8 - Side feed View all variants
14.99 Tax excl.
check In stock
Description

CORE 5.8 Side Feed is a special version of the CORE 5.8 with a side-exit cable, ideal for burying inside an airplane wing or fuselage. The CORE 5.8 is TrueRC's omnidirectional antenna built on years of experience with drones. A refined RF design provides excellent consistency, and the durable polycarbonate shell survives inevitable crashes.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −10 to −20 dB (3.2%)
  • Bandwidth: 5.5GHz–6.1GHz
  • Radiation Efficiency: 98%
  • SWR: ≤1.2:1
  • Weight: Varies with connector/cable option
  • Dimensions (head): 16.9mm dia. × 13.1mm height
  • Length: Varies with cable option
  • Cable: TrueRC RG178 coax
  • Connector: Reinforced True-SMA/90°, U.FL, or MMCX/90°
Data sheet
0608597255546
0608597255546
Frequency (GHz)
5.8
Type of polarization
Circular polarization
