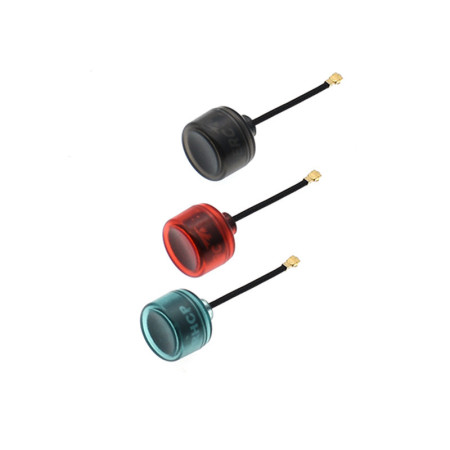

CORE 5.8 U.FL — angled view
zoom_out_map
chevron_left chevron_right

CORE 5.8 - U.FL

TrueRC CORE 5.8 with U.FL connector — refined omnidirectional CP antenna with durable polycarbonate housing. 1.9 dBic, 5.5–6.7GHz, flexible 4mm tube. Available in RHCP or LHCP.

  • RHCP
  • LHCP
  • U.FL 45mm
  • U.FL 85mm
  • U.FL w/35mm tube
  • U.FL w/100mm tube

$14.99

14.99 Tax excluded

check In stock
CORE 5.8 U.FL — angled view
CORE 5.8 - U.FL View all variants
14.99 Tax excl.
check In stock
Description

The CORE 5.8 is TrueRC's refined omnidirectional CP antenna built on years of experience with drone enthusiasts and professionals. A refined RF design provides excellent consistency across units and cable configurations. The durable polycarbonate shell survives inevitable crashes. Available in three colors. U.FL connector with flexible 4mm tube.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −10 to −20 dB
  • Bandwidth: 5.5GHz–6.7GHz
  • Radiation Efficiency: 98%
  • SWR: ≤1.2:1
  • Weight: Varies with cable option
  • Dimensions (head): 16.9mm dia. × 13.1mm height
  • Length: Varies with cable option
  • Connector: U.FL
Data sheet
0608597254938
0608597254938
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
Caddx Vista / RunCam Link
DJI Air unit O3
DJI Air unit O4
Walksnail Avatar HD VTX
Connector
U.FL
