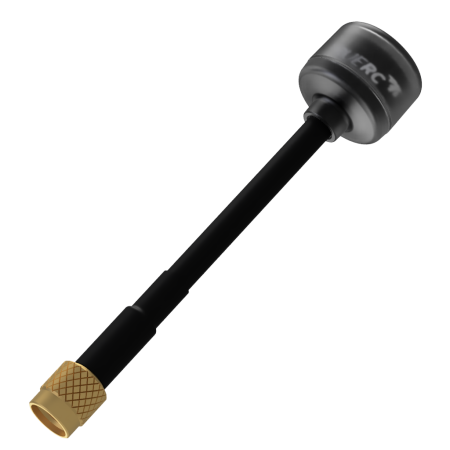

CORE 5.8 SMA — RHCP red
zoom_out_map
chevron_left chevron_right

CORE 5.8 - SMA

TrueRC CORE 5.8 with reinforced SMA connector — refined omnidirectional CP antenna with durable polycarbonate housing. 1.9 dBic, 5.5–6.7GHz. Available in SMA or SMA-90°, RHCP or LHCP.

  • RHCP
  • LHCP
  • SMA 80mm
  • SMA 125mm
  • SMA 160mm
  • SMA90 155mm
  • SMA flex 125mm
  • SMA flex 80mm

$14.99

14.99 Tax excluded

check In stock
CORE 5.8 SMA — SMA-90 detail
CORE 5.8 - SMA View all variants
14.99 Tax excl.
check In stock
Description

The CORE 5.8 is TrueRC's refined omnidirectional CP antenna built on years of experience with drone enthusiasts and professionals. A refined RF design provides excellent consistency across units and cable configurations. The durable polycarbonate shell survives inevitable crashes. Available in three colors. Reinforced SMA or SMA-90° connector with flexible coax cable.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −10 to −20 dB
  • Bandwidth: 5.5GHz–6.7GHz
  • Radiation Efficiency: 98%
  • SWR: ≤1.2:1
  • Weight: Varies with connector/cable option
  • Dimensions (head): 16.9mm dia. × 13.1mm height
  • Length: Varies with cable option
  • Cable: TrueRC RG402 Semi-Flex / TrueRC RG316 Flex
  • Connector: Reinforced SMA or SMA-90°
Data sheet
0608597255034
0608597255034
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
HD Zero Google
HD Zero VRX4
Connector
SMA
