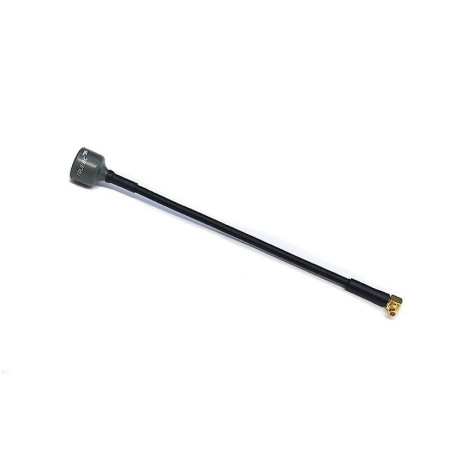

Singularity 5.8 MMCX — front view
zoom_out_map
chevron_left chevron_right

SINGULARITY 5.8 - MMCX

The Singularity 5.8 MMCX is TrueRC's most advanced antenna — the smallest and lightest 5.8GHz CP antenna ever made. Maximum miniaturization with no performance compromise. MMCX or MMCX90 connector.

  • RHCP
  • LHCP
  • MMCX short 45mm
  • MMCX regular 72mm
  • MMCX90 short 45mm
  • MMCX90 regular 90mm
  • MMCX90 long 120mm

$19.99

19.99 Tax excluded

check In stock
Singularity 5.8 MMCX — RHCP variant
SINGULARITY 5.8 - MMCX View all variants
19.99 Tax excl.
check In stock
Description

The Singularity 5.8 is TrueRC's most advanced antenna. Miniaturization pushed further than ever before, yet performance is a notch higher still. The smallest and lightest 5.8GHz CP antenna ever made. MMCX or angled MMCX connector, RG405 or RG178 cable.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −15 to −30 dB (1.9%)
  • Bandwidth: 5.6GHz–6.0GHz
  • Radiation Efficiency: 99%
  • SWR: ≤1.5:1
  • Weight: 1.03g to 3.55g depending on configuration
  • Dimensions (head): 11.8mm dia. × 8.2mm height
  • Length: Varies with cable option
  • Cable: RG405 or RG178
  • Connector: MMCX or MMCX90
Data sheet
0608597252965
0608597252965
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
DJI Air unit V1
Connector
MMCX
