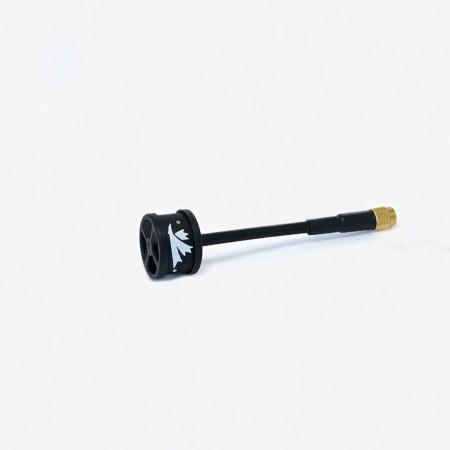

Singularity 2.4 RP-SMA — side profile
zoom_out_map
chevron_left chevron_right

SINGULARITY 2.4 - RP-SMA

TrueRC Singularity 2.4 RP-SMA — the next iteration of the popular Singularity antenna. Smaller, more rugged, and with a more uniform pattern. 1.9 dBic, 2.4GHz, 96mm length with RP-SMA connector.

  • RHCP
  • LHCP
  • Bottom

$24.99

24.99 Tax excluded

check In stock
Singularity 2.4 RP-SMA — side profile
SINGULARITY 2.4 - RP-SMA View all variants
24.99 Tax excl.
check In stock
Description

The Singularity 2.4 RP-SMA is the next iteration of TrueRC's popular Singularity antenna — smaller, more rugged, and with a more uniform radiation pattern. 1.9 dBic gain, 2.4GHz band, RP-SMA connector with RG402 axial or RG178 side feed cable option.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −15 to −30 dB (2.2%)
  • Bandwidth: 2.4GHz–2.46GHz
  • Radiation Efficiency: 99%
  • SWR: ≤1.5:1
  • Weight: 9.45g
  • Dimensions (head): 23.3mm dia. × 16.0mm height
  • Length: 96mm
  • Cable: RG402 (axial feed) or RG178 (side feed)
  • Connector: RP-SMA
Data sheet
0608597252989
0608597252989
Frequency (GHz)
2.4
Type of polarization
Circular polarization
Connector
RP-SMA
