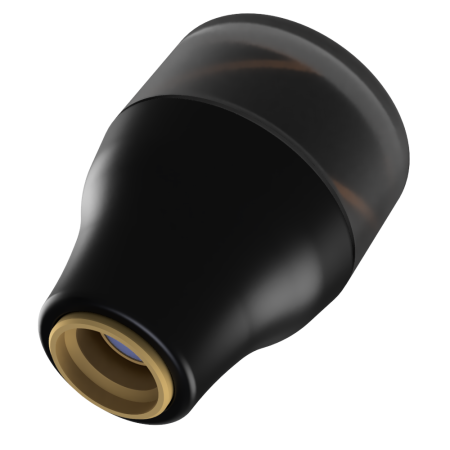

Stubby CORE 5.8 RP-SMA

The stubby 5.8 is a wide-band circular polarized antenna built onto LDS (laser direct structuring). By pushing the limits of this technology, TrueRC was able to etch the complex structure needed our antenna. Featuring a uniquely ingenuous design that incorporate both feeding network and CP elements within the antenna. Its low profile, make it especially useful for FPV goggles use.

Features

• Compact size.
• High efficiency.
• Uniform stable radiation pattern throughout bandwidth and beyond.
• Excellent axial ratio throughout bandwidth and beyond.
• DC grounded construction.

Specs

• Frequency: 5.5-6.2GHz
• Gain @5.8GHz: 2.0 dBic
• Polarization: RHCP or LHCP
• Connector: RP-SMA
• Dimensions(mm): Dia: 16.9, Height: 23.5
• Weight: 4.9g
