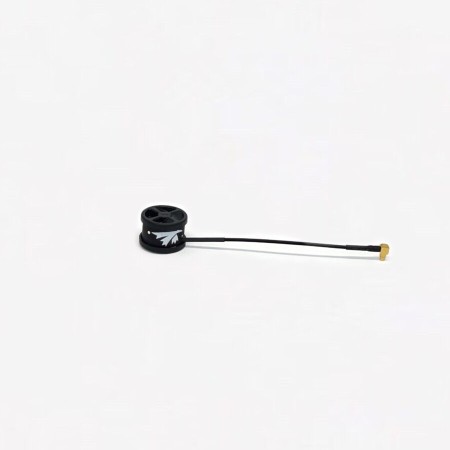

Singularity 2.4 U.FL — 1.9 dBic 2.4GHz CP Antenna | TrueRC
zoom_out_map
chevron_left chevron_right

SINGULARITY 2.4 - MMCX90

  • RHCP
  • LHCP
  • Side

$24.99

24.99 Tax excluded

check In stock
Singularity 2.4 U.FL — 1.9 dBic 2.4GHz CP Antenna | TrueRC
SINGULARITY 2.4 - MMCX90 View all variants
24.99 Tax excl.
check In stock
Singularity 2.4 U.FL — 1.9 dBic 2.4GHz CP Antenna | TrueRC
SINGULARITY 2.4 - MMCX90
check In stock
Description

The next iteration of our popular singularity antenna, smaller, more rugged and more uniform pattern.

Specs:

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB, (2.2%)
  • Bandwidth: 2.4GHz-2.46GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight: 9.45g
  • Dimensions(head): 23.3mm dia. X 16.0mm height.
  • Length: 90mm
  • Cable: RG178 coax.
  • Connector: MMCX90

Data sheet
0608597251494
Frequency (GHz)
2.4
Type of polarization
Circular polarization
Connector
MMCX
Prints

  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −15 to −30 dB (2.2%)
  • Bandwidth: 2.4GHz–2.46GHz
  • Radiation Efficiency: 99%
  • SWR: ≤1.5:1
  • Weight: 9.45g
  • Dimensions (head): 23.3mm dia. × 16.0mm height
  • Length: 90mm
  • Cable: RG178
  • Connector: MMCX90
