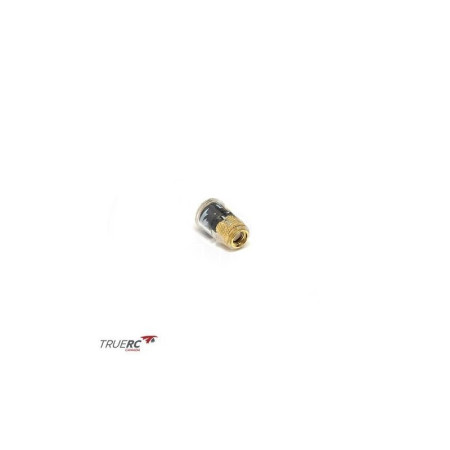

SINGULARITY 5.8 Stubby SMA — RHCP black
zoom_out_map
chevron_left chevron_right

SINGULARITY 5.8 stubby SMA

TrueRC Singularity 5.8 Stubby SMA — the proven Singularity CP omni in a thicker, hardened polycarbonate case built for extreme crash resistance. 1.9 dBic, 5.6–6.0GHz. RHCP or LHCP.

  • RHCP
  • LHCP

$19.99

19.99 Tax excluded

check In stock
SINGULARITY 5.8 Stubby SMA — installed view
SINGULARITY 5.8 stubby SMA View all variants
19.99 Tax excl.
check In stock
Description

The TrueRC Singularity 5.8 Stubby SMA brings the proven Singularity RF design into a hardened housing. The thicker polycarbonate case — injection-molded and ultrasonically welded — is designed to survive even the hardest crashes without compromising antenna performance. RHCP or LHCP, True-SMA connector.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −15 to −30 dB (1.9%)
  • Bandwidth: 5.6–6.0GHz
  • Radiation Efficiency: 99%
  • SWR: ≤1.5:1
  • Weight: 3.7g
  • Dimensions: 12.7mm dia. × 20mm height
  • Connector: SMA
Data sheet
0608597254631
0608597254631
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
HD Zero Google
HD Zero VRX4
Connector
SMA
