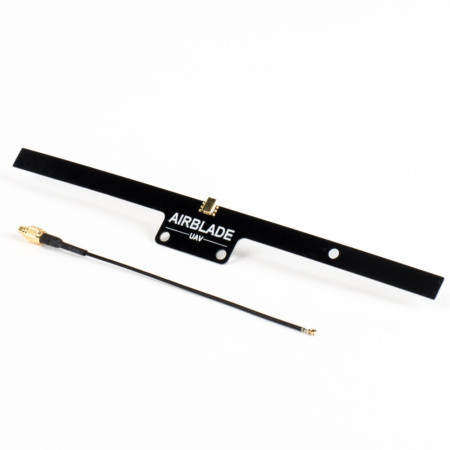

AirBlade Tuffpole 900MHz — front view
zoom_out_map
chevron_left chevron_right

TrueRC AirBlade Tuffpole 900 MHz (ipx 4 for FrSky R9)

TrueRC × AirBladeUAV Tuffpole 900MHz — a flexible PCB dipole designed for easy mounting and removal. Centre MMCX connector with MMCX-to-U.FL pigtail included. 1.8 dBi, 850–925MHz.

$12.99

12.99 Tax excluded

check In stock
AirBlade Tuffpole 900MHz — front view
TrueRC AirBlade Tuffpole 900 MHz (ipx 4 for FrS...
12.99 Tax excl.
check In stock
Description

The TrueRC × AirBladeUAV Tuffpole 900MHz is a flexible PCB dipole designed for easy mounting and quick removal when transporting your aircraft. A centre MMCX connector links to the receiver via the included MMCX-to-U.FL pigtail, allowing optimal antenna positioning. The thin, flexible PCB flexes on impact rather than breaking. Two 20×20mm mounting holes simplify installation. A white dot marks the counter-poise (ground) side — useful when one side is close to carbon fiber or a battery.

Specifications
  • Gain: 1.8 dBi
  • Bandwidth: 850–925MHz
  • Weight: 3.3g
  • Dimensions: 150mm × 16mm
  • Connector: MMCX (centre-feed)
  • Includes: 10cm MMCX-to-U.FL pigtail
Data sheet
0608597251265
0608597251265
Frequency (GHz)
0.9
Type of polarization
Linear polarization
