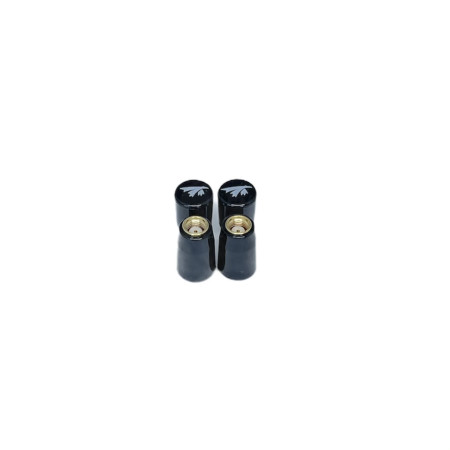

SINGULARITY 5.8 Stubby RP-SMA — color variants
zoom_out_map
chevron_left chevron_right

SINGULARITY 5.8 stubby RP-SMA

TrueRC Singularity 5.8 Stubby RP-SMA — direct-fit replacement for DJI FPV Goggles with much lower profile than stock. 1.9 dBic, 5.6–6.0GHz. RHCP or LHCP. Over 50% more range.

  • RHCP
  • LHCP
  • 4-pack
  • Single

$74.99

74.99 Tax excluded

check In stock
SINGULARITY 5.8 Stubby RP-SMA — scale comparison
SINGULARITY 5.8 stubby RP-SMA View all variants
74.99 Tax excl.
check In stock
Description

The TrueRC Singularity 5.8 Stubby RP-SMA is a direct-fit upgrade for the DJI FPV system goggles. Antennas install directly — no modifications required — with a much lower profile than the stock antennas and over 50% more range thanks to circular polarization. The hardened polycarbonate case — injection-molded and ultrasonically welded — is designed for extreme crash resistance. RHCP or LHCP.

Specifications
  • Gain: 1.9 dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: −15 to −30 dB (1.9%)
  • Bandwidth: 5.6–6.0GHz
  • Radiation Efficiency: 99%
  • SWR: ≤1.5:1
  • Weight: 3.7g
  • Dimensions: 12.7mm dia. × 20mm height
  • Connector: RP-SMA
Data sheet
0608597253719
0608597253719
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
DJI FPV V1
DJI FPV V2
Worksnail Avatar HD / Fat Shark Dominator
Worksnail Avatar HD X
