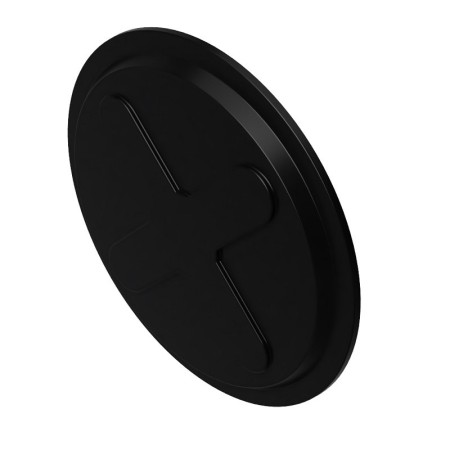

X-21 5.8 — front view
zoom_out_map
chevron_left chevron_right

X-21 5.8

TrueRC X-21 5.8 — a 21 dBic circular polarized panel antenna for long-range UAV, wireless and professional communications. Very low side lobes, excellent front-to-back ratio. 4.8–6.3GHz, 252.7mm dia., 255g, SMA. Contact TrueRC for pricing.

  • RHCP
  • LHCP

$324.99

324.99 Tax excluded

check In stock
X-21 5.8 — front view
X-21 5.8 View all variants
324.99 Tax excl.
check In stock
X-21 5.8 — front view
X-21 5.8
check In stock
Description

The X-21 5.8 is TrueRC's highest-gain 5.8GHz panel antenna — an expanded X-RAY design engineered for maximum main-lobe efficiency with very low side lobes and excellent front-to-back ratio. The single-feed panel format delivers over 21 dBic at 5.8GHz across the 4.8–6.3GHz band. Suitable for UAV command and control, long-range wireless networks, and research or defense communications.

Contact TrueRC for pricing and availability.

Specifications
  • Frequency: 4.8–6.3GHz
  • Gain @5.8GHz: 21 dBic
  • Gain @5GHz: 16 dBic
  • Polarization: RHCP or LHCP
  • Beam-width @-3dB: 15°
  • Connector: SMA
  • Dimensions: 252.7mm dia. × 26.5mm
  • Weight: 255g
  • Mounting: 1/4-20 mounting point
Data sheet
0608597256062
0608597256062
Frequency (GHz)
5
5.8
Type of polarization
Circular polarization
Connector
SMA
