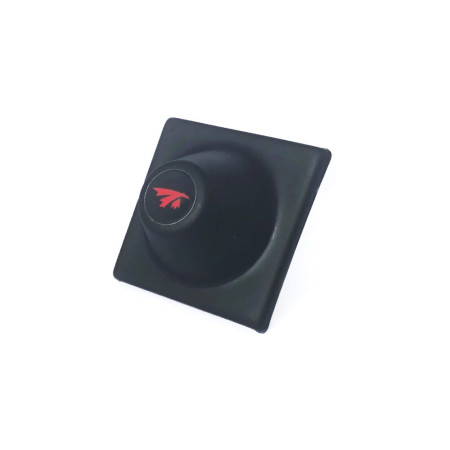

SNIPER II 5.8 - directional antenna front view
zoom_out_map
chevron_left chevron_right

SNIPER II 5.8

The TrueRC SNIPER II 5.8 is a compact redesign of the sniper antenna — just 1/4 the size of the original. 13.5dBic gain, 80° beam width, and 98% radiation efficiency for long-range FPV with or without a base station.

  • RHCP
  • LHCP

$49.99

49.99 Tax excluded

check In stock
SNIPER II 5.8 - directional antenna front view
SNIPER II 5.8 View all variants
49.99 Tax excl.
check In stock
Description

SNIPER II 5.8 — Compact High-Gain Directional FPV Antenna

The TrueRC SNIPER II 5.8 is a major redesign of the sniper antenna, addressing its main limitation: size. At just 1/4 of the original footprint, it delivers the same 13.5dBic gain and high axial ratio for long-range FPV flying with or without a base station.

Available in RHCP and LHCP. Covers 5.3–6.5GHz.

*Beam-width: coverage equivalent to an omni. **@-3dB: at least 70% of max range.

Specifications
  • Frequency: 5.3–6.5GHz
  • Gain: 13.5dBic
  • Polarization: RHCP or LHCP
  • Radiation Efficiency: 98%
  • Beam-width (H and V): 80°
  • Beam-width @-3dB: 45°
  • Connector: SMA Male
  • Dimensions: 52mm × 52mm × 37mm
  • Weight: 15.5g
Data sheet
0608597252217
0608597252217
Frequency (GHz)
5.8
Type of polarization
Circular polarization
