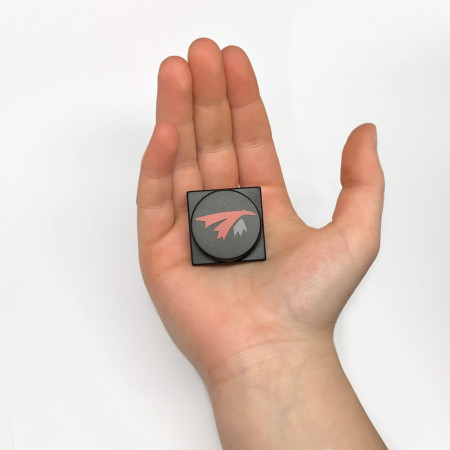

X-AIR 5.8 MK II RP-SMA — front view
zoom_out_map
chevron_left chevron_right

X-AIR 5.8 Mk. II - RP-SMA

The X-AIR 5.8 MK II RP-SMA is TrueRC's compact crosshair antenna redesigned with aerospace grade PCB. Nearly 1/4 the footprint of the original — same wide 120° coverage and high axial ratio, with RP-SMA male connector.

  • RHCP
  • LHCP
  • RP SMA

$29.99

29.99 Tax excluded

check In stock
X-AIR 5.8 MK II RP-SMA — side profile
X-AIR 5.8 Mk. II - RP-SMA View all variants
29.99 Tax excl.
check In stock
Description

The X-AIR 5.8 MK II RP-SMA is TrueRC's latest redesign of the X-AIR 5.8 antenna, featuring aerospace grade PCB material and computer-aided engineering. No compromise in beam width or gain — now in almost 1/4 of the original footprint. Wide coverage and high axial ratio make it perfect for long-distance flights without antenna aiming adjustment. RP-SMA male connector.

Specifications
  • Bandwidth: 5.1GHz–6.7GHz
  • Gain: 9.5–10.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120°
  • Beam-width @-3dB**: 68°
  • Connector: RP-SMA male
  • Dimensions: 32mm × 32mm × 16mm
  • Weight: [À COMPLÉTER]

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597255676
0608597255676
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Connector
RP-SMA
