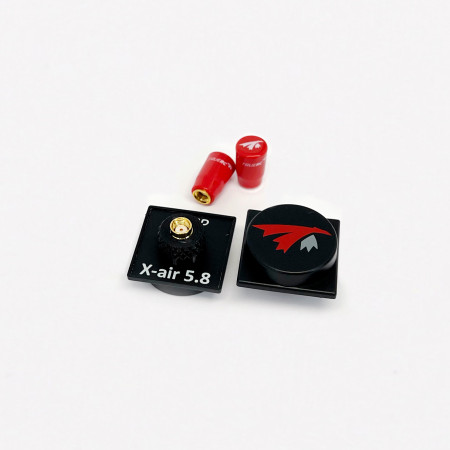

X-AIR 5.8 MK II for Walksnail — connector detail
zoom_out_map
chevron_left chevron_right

X-AIR 5.8 MK II pair for Walksnail

TrueRC X-AIR 5.8 MK II pair with direct RP-SMA connectors for Walksnail Avatar and Fat Shark Dominator HD FPV goggles. Screw on, 10 dBic gain, 120° beam. Pair with singularity stubby antennas for the full setup.

  • RHCP
  • LHCP
  • Combo Stubby
  • Pair

$89.99

89.99 Tax excluded

check In stock
X-AIR 5.8 MK II for Walksnail — side profile
X-AIR 5.8 MK II pair for Walksnail View all variants
89.99 Tax excl.
check In stock
Description

TrueRC X-AIR 5.8 MK II pair with direct RP-SMA connectors for Walksnail Avatar or Fat Shark Dominator HD FPV goggles. Simply screw on the custom knurled RP-SMA connectors on the front ports. 10 dBic gain combined with a 120° beam width yield excellent long-range performance in a compact, low-profile package. Fill the remaining ports with the included singularity stubby for the full antenna setup.

Custom knurled RP-SMA connectors — direct fit

Made to the highest standards to fit the Walksnail avatar or Fat Shark Dominator without adapters. Knurled finish for easy hand-tightening.

Specifications
  • Bandwidth: 5.1GHz–6.7GHz
  • Gain: 9.5–10.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120°
  • Beam-width @-3dB**: 68°
  • Connector: RP-SMA male
  • Dimensions: 32mm × 32mm × 16mm
  • Weight: [À COMPLÉTER]

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597254426
0608597254426
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
Worksnail Avatar HD / Fat Shark Dominator
Connector
RP-SMA
