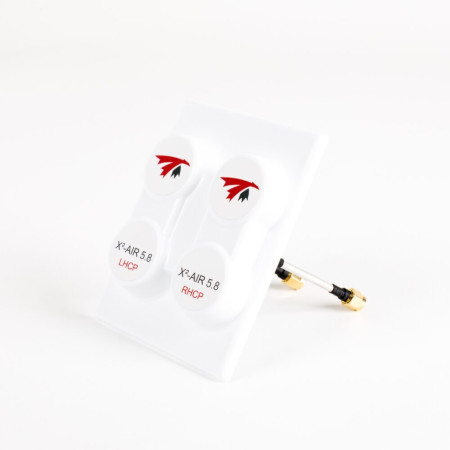

X²-AIR 5.8 "dual"
The X²-AIR 5.8 Dual mounts two X²-AIR antennas on a single panel — one RHCP and one LHCP — ideal for MIMO systems or analog ultimate link setups, delivering 13dBic gain and perfect 1.0 axial ratio.
Description
X²-AIR 5.8 Dual — MIMO Crosshair FPV Antenna
The X²-AIR 5.8 Dual places two X²-AIR crosshair antennas on a single panel, one RHCP and one LHCP. This enables MIMO systems and analog ultimate link setups that maximize range and signal resilience.
With a 13dBic gain and a perfect 1.0 axial ratio, the X²-AIR Dual delivers outstanding directional performance for long-range FPV pilots.
*Beam-width: coverage where reception is at least equivalent to an omni. **@-3dB: at least 70% of max range.
Specifications
- Frequencies: 5.6–5.95GHz
- Gain: 13dBic
- Axial Ratio: 1.0 (perfect)
- Beam-width Horizontal: 150°
- Beam-width Vertical: 62°
- Hor. beam @-3dB: 74°
- Vert. beam @-3dB: 34°
- Connector: SMA × 2
- Dimensions: 4.1″ × 4.1″ × 0.6″ (SMA cable 1.5″)
Data sheet
0608597252279
0608597252279
- Frequency (GHz)
- 5.8
- Type of polarization
- Circular polarization
