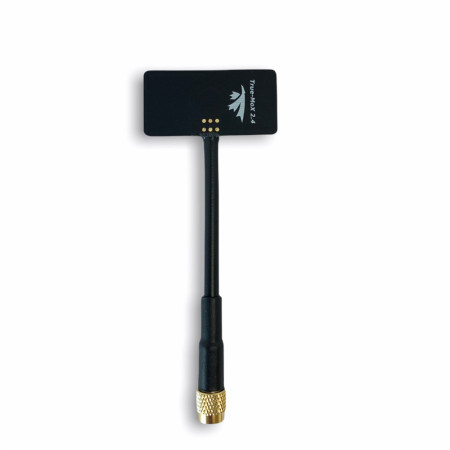

True-MoX 2.4 RP-SMA - front view
zoom_out_map
chevron_left chevron_right

True-MoX 2.4 - RP-SMA

The TrueRC True-MoX 2.4 RP-SMA is a redesigned Moxon for 2.4GHz systems with RF-rated PCB and 5.9dBi gain. Near-zero body interaction. RP-SMA connector for IRC Ghost, TBS Tracer, and ExpressLRS.

  • RP SMA

$14.99

14.99 Tax excluded

check In stock
True-MoX 2.4 RP-SMA - front view
True-MoX 2.4 - RP-SMA View all variants
14.99 Tax excl.
check In stock
True-MoX 2.4 RP-SMA - front view
True-MoX 2.4 - RP-SMA
check In stock
Description

True-MoX 2.4 RP-SMA — 2.4GHz Moxon Ground Station Antenna

The True-MoX 2.4 RP-SMA is TrueRC's revision of the classic Moxon antenna for 2400–2510MHz, using 3D electromagnetic simulation and RF-rated PCB. Near-zero body interaction.

Point the long edge of the white panel toward your flight area. Having the long edge vertical produces vertical polarization. Do not point the flat side toward the target — this is not a patch antenna.

Specifications
  • Frequencies: 2400–2510MHz
  • Gain: 5.9dBi
  • Beam width: 156°
  • Beam width @-3dB: 133°
  • Connector: RP-SMA
  • Dimensions: 39.5mm × 100mm
Data sheet
0608597253375
0608597253375
Frequency (GHz)
2.4
Type of polarization
Linear polarization
Compatibilities
ImmersionRC Ghost
TBS Tracer
Connector
RP-SMA
