$62.99
chevron_left
chevron_right

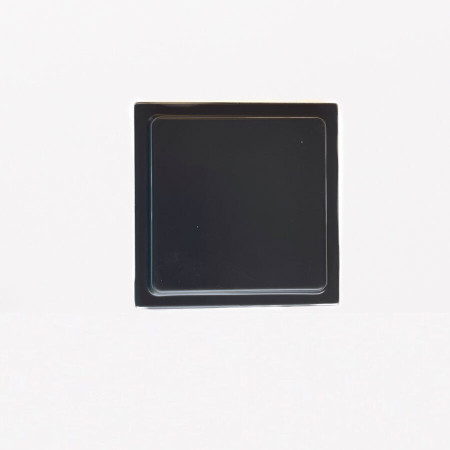

LINE-AIR 1.3
The Line-AIR 1.3 is TrueRC's compact redesign of the biquad antenna for the 1.3GHz band, delivering 10 dBic gain in less than half the typical size. Includes a 1/4-20 mounting point on the back for easy ground station attachment.
Description
The Line-AIR 1.3 is TrueRC's compact redesign of the biquad antenna for the 1.3GHz band, delivering 10 dBic gain in less than half the typical size. A 1/4-20 mounting point on the back makes it easy to attach to your ground station.
Specifications
- Frequency: 1230–1350MHz
- Gain: 10 dBic
- Polarization: Linear
- Radiation Efficiency: 99%
- Beam-width*: 120°
- Beam-width @-3dB**: 68°
- Connector: SMA male
- Dimensions: 152mm × 152mm × 27mm
- Mounting: Standard 1/4-20 flush thread
- Weight: 115g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597253863
0608597253863
- Frequency (GHz)
- 1.3
- Type of polarization
- Linear polarization
- Connector
- SMA
