True-MoX 915
The TrueRC True-MoX 915 is a redesigned Moxon for 902–925MHz, built with RF-rated PCB. Near-zero body interaction and 5.4dBi gain — ideal for TBS Crossfire and FrSky R9M ground stations.
Description
True-MoX 915 — 915MHz Moxon Ground Station Antenna

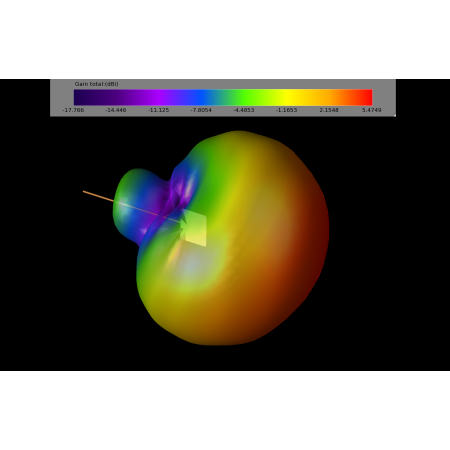

The True-MoX 915 is TrueRC's revision of the classic Moxon antenna, redesigned using 3D electromagnetic simulation and RF-rated PCB material. The result is an antenna with minimal interaction with the pilot's body.
Point the long edge of the white panel toward your flight area for optimal coverage. Having the long edge vertical produces vertical polarization. Do not point the flat side toward the target — this is not a patch antenna.
Specifications
- Frequencies: 902–925MHz
- Gain: 5.4dBi
- Beam width: 156°
- Beam width @-3dB: 133°
- Connector: SMA
- Dimensions: 103mm × 165mm
Data sheet
0608597251234
0608597251234
- Frequency (GHz)
- 0.9
- Type of polarization
- Linear polarization
- Compatibilities
- TBS Crossfire
