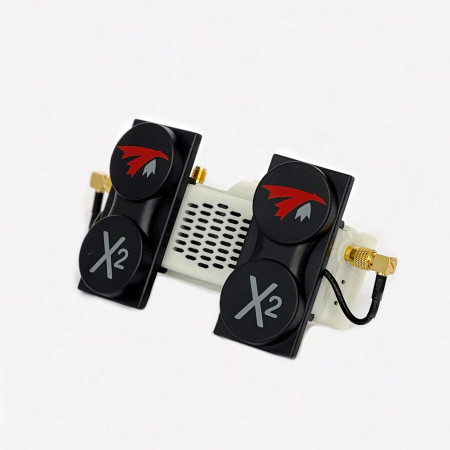

X²-AIR 5.8 MK II for HDzero VRX4 — front view
zoom_out_map
chevron_left chevron_right

X²-AIR 5.8 MK II pair for HDzero VRX4

The X²-AIR 5.8 MK II pair for HDzero VRX4 slides directly onto the module's rails. 13 dBic gain and a combined 165° beam width. Custom knurled SMA connectors and included slide-on mounts make installation effortless.

  • RHCP
  • LHCP
  • Pair
  • Combo Core

$101.99

101.99 Tax excluded

check In stock
X²-AIR 5.8 MK II for HDzero VRX4 — front view
X²-AIR 5.8 MK II pair for HDzero VRX4 View all variants
101.99 Tax excl.
check In stock
Description

The X²-AIR 5.8 MK II pair for HDzero VRX4 slides directly onto the module's rails with custom knurled SMA connectors. 13 dBic gain and a combined 165° beam width yield outstanding long-range performance. Pair with a set of OCP omni-directional antennas for a complete system.

Dual elements array — 13 dBic circular polarized, 75° beam per element

By combining two elements onto a single feed, gain is boosted and horizontal coverage is widened, trading vertical coverage that is rarely needed in FPV flying.

Low profile — only 15mm thick

The most compact antenna at this gain level. The included slide-on mounts attach natively to the HDzero VRX4 module.

Custom knurled SMA connectors

Made to the highest standards to fit the HDzero module perfectly. Knurled finish for easy hand-tightening.

Specifications
  • Bandwidth: 5.1GHz–7.0GHz
  • Gain: 13 dBic
  • Polarization: LHCP or RHCP
  • Beam-width Horizontal*: 150°
  • Beam-width Vertical*: 62°
  • Hor. beam @-3dB**: 75°
  • Vert. beam @-3dB**: 34°
  • Connector: Custom knurled SMA
  • Dimensions: 72mm × 34mm × 15mm
  • Weight: 20g each

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597254167
0608597254167
Frequency (GHz)
5.8
Type of polarization
Circular polarization
Compatibilities
HD Zero VRX4
Connector
SMA
