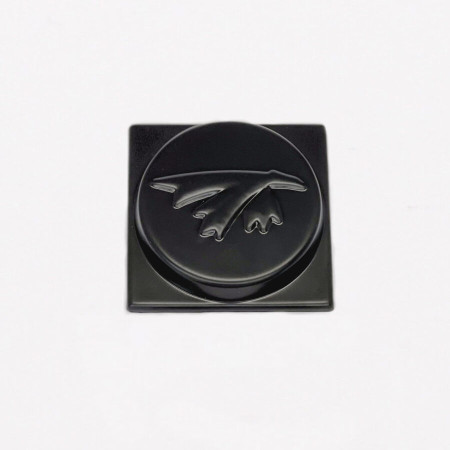

X-AIR 2.4 MK. II
The X-AIR 2.4 MK II is TrueRC's redesign of the X-AIR 2.4, featuring aerospace grade PCB material. Nearly 1/4 the footprint of the original — same wide 120° coverage and high axial ratio, perfect for far-off ventures without antenna aiming.
Description
The X-AIR 2.4 MK II is TrueRC's latest redesign of the X-AIR 2.4 antenna. Featuring aerospace grade PCB material and the latest computer-aided engineering, there is no compromise in beam width or gain — now in almost 1/4 of the original footprint. The same wide coverage and high axial ratio make it perfect for long-distance flights without antenna aiming adjustment.
Specifications
- Bandwidth: 2.3GHz–2.6GHz
- Gain: 9.5–10 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 120°
- Beam-width @-3dB**: 68°
- Connector: SMA male
- Dimensions: 82mm × 82mm × 24mm
- Weight: [À COMPLÉTER]
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597254259
0608597254259
- Frequency (GHz)
- 2.4
- Type of polarization
- Circular polarization
- Connector
- SMA
