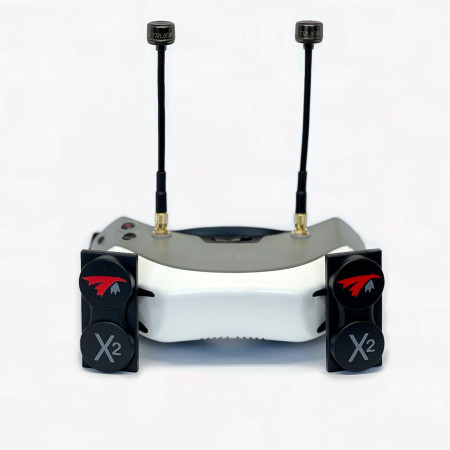

X²-AIR 5.8 MK II pair for Walksnail
TrueRC X²-AIR 5.8 MK II pair with direct RP-SMA connectors for Walksnail Avatar and Fat Shark Dominator HD FPV goggles. 13 dBic gain, 150° horizontal sector beam. Optional 120mm OCP combo available.
Description
TrueRC X²-AIR 5.8 MK II pair with direct RP-SMA connectors for Walksnail Avatar or Fat Shark Dominator HD FPV goggles. Simply screw on the custom knurled RP-SMA connectors on the front ports. 13 dBic gain combined with a 150° sector beam yield outstanding long-range performance. Pair with 120mm OCP antennas for the full antenna setup.
Custom knurled RP-SMA connectors — direct fit
Made to the highest standards to fit the Walksnail Avatar or Fat Shark Dominator without adapters. Knurled finish for easy hand-tightening.
Specifications
- Bandwidth: 5.1GHz–7.0GHz
- Gain: 13 dBic
- Polarization: LHCP or RHCP
- Beam-width Horizontal*: 150°
- Beam-width Vertical*: 62°
- Hor. beam @-3dB**: 75°
- Vert. beam @-3dB**: 34°
- Connector: Custom knurled RP-SMA
- Dimensions: 72mm × 34mm × 15mm
- Weight: [À COMPLÉTER]
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597255638
0608597255638
- Frequency (GHz)
- 5.8
- Type of polarization
- Circular polarization
- Compatibilities
- Worksnail Avatar HD / Fat Shark Dominator
- Connector
- RP-SMA
