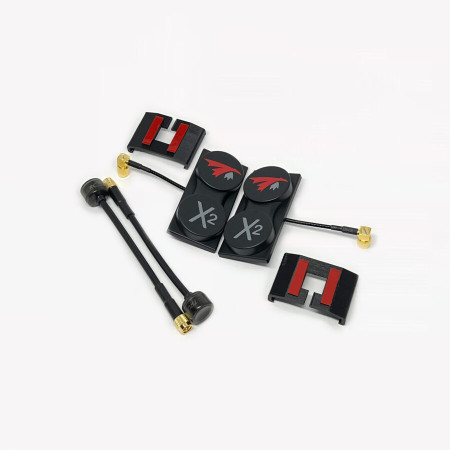

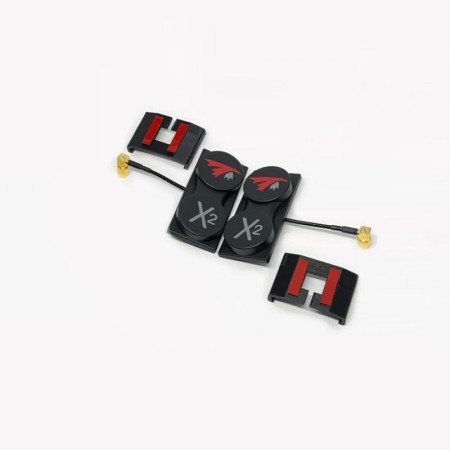

X²-AIR 5.8 MK II pair for HDzero goggles
The X²-AIR 5.8 MK II pair for HDzero goggles delivers 13 dBic gain and a combined 165° beam width. Slide onto the goggles rails and screw on the custom knurled SMA connectors. Low profile 15mm design.
Description
The X²-AIR 5.8 MK II pair for HDzero goggles delivers 13 dBic gain and a combined 165° beam width. Simply slide the antennas onto the goggles' rails and screw on the custom knurled SMA connectors. Pair with OCP omni-directional antennas for a complete antenna system.
Dual elements array — 13 dBic circular polarized, 75° beam per element
By combining two elements onto a single feed, gain is boosted and horizontal coverage is widened, trading vertical coverage rarely needed in FPV flying.
Low profile — only 15mm thick
The most compact antenna at this gain level. The included slide-on mounts attach natively to the HDzero goggles rails.
Custom knurled SMA connectors
Made to the highest standards to fit HDzero goggles perfectly. Knurled finish for easy hand-tightening.
Specifications
- Bandwidth: 5.1GHz–7.0GHz
- Gain: 13 dBic
- Polarization: LHCP or RHCP
- Beam-width Horizontal*: 150°
- Beam-width Vertical*: 62°
- Hor. beam @-3dB**: 75°
- Vert. beam @-3dB**: 34°
- Connector: Custom knurled SMA
- Dimensions: 72mm × 34mm × 15mm
- Weight: 20g each
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597254549
0608597254549
- Frequency (GHz)
- 5.8
- Type of polarization
- Circular polarization
- Compatibilities
- HD Zero Google
- Connector
- SMA
