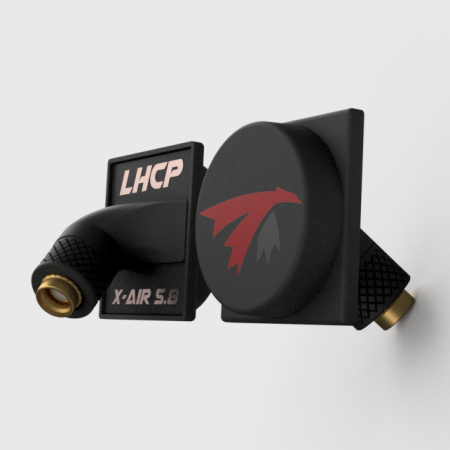

X-AIR 5.8 MK II for Walksnail X — installed view
zoom_out_map
chevron_left chevron_right

X-AIR 5.8 MK II pair for Walksnail X

TrueRC X-AIR 5.8 MK II pair with custom angled RP-SMA connectors for Walksnail Avatar HD Goggles X. Screw onto the top ports — antennas face forward. 10 dBic, 120° beam. Optional singularity stubby combo.

  • RHCP
  • LHCP
  • Combo Stubby
  • Pair

$62.99

62.99 Tax excluded

check In stock
X-AIR 5.8 MK II for Walksnail X — installed view
X-AIR 5.8 MK II pair for Walksnail X View all variants
62.99 Tax excl.
check In stock
Description

TrueRC X-AIR 5.8 MK II pair with custom angled RP-SMA connectors for Walksnail Avatar HD Goggles X. Simply screw on the angled RP-SMA connectors on the top ports of the goggles — the compound angle ensures the antennas face forward with a slight uptilt. 10 dBic gain and a 120° beam for excellent FPV performance in a compact package. Pair with singularity stubby antennas for the full setup.

Specifications
  • Bandwidth: 5.1GHz–6.7GHz
  • Gain: 9.5–10.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120°
  • Beam-width @-3dB**: 68°
  • Connector: RP-SMA male (angled)
  • Dimensions: 34mm × 34mm × 34mm
  • Weight: [À COMPLÉTER]

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597256093
0608597256093
Type of polarization
Circular polarization
Compatibilities
DJI FPV V1
DJI FPV V2
Worksnail Avatar HD X
Connector
RP-SMA
