$62.99
chevron_left
chevron_right
X-AIR 5.8 MK II pair for HDzero VRX4
TrueRC X-AIR 5.8 MK II pair for HDzero VRX4. Slide onto the module rails and screw on the custom knurled SMA connectors. 10 dBic gain, 120° beam per antenna combining to 135° total. Low profile 15mm design.
Description

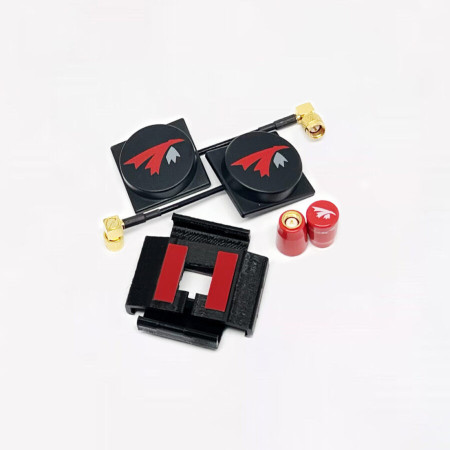

TrueRC X-AIR 5.8 MK II pair for HDzero VRX4 module. Simply slide the antennas onto the rails and screw on the custom knurled SMA connectors. 10 dBic gain combined with a 120° beam width yields excellent long-range FPV performance in a compact, low-profile package. Pair with CORE or singularity stubby omni-directionals for a complete antenna system.
Low profile — only 15mm thick
Included slide-on mounts fit natively on the HDzero VRX4 module rails.
Custom knurled SMA connectors
Made to the highest standards for a perfect fit and easy hand-tightening.
Specifications
- Bandwidth: 5.1GHz–6.7GHz
- Gain: 9.5–10.5 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 120°
- Beam-width @-3dB**: 68°
- Connector: SMA male
- Dimensions: 32mm × 32mm × 15mm
- Weight: [À COMPLÉTER]
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Data sheet
0608597254365
0608597254365
- Frequency (GHz)
- 5.8
- Type of polarization
- Circular polarization
- Compatibilities
- HD Zero VRX4
- Connector
- SMA
