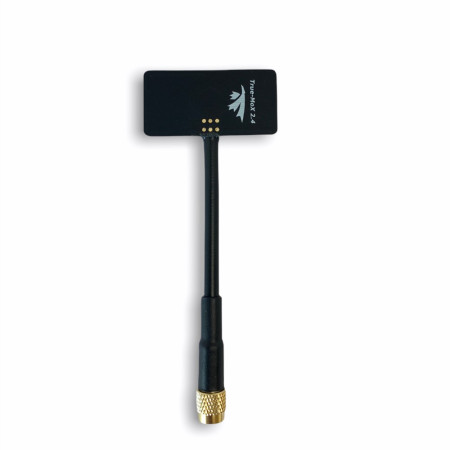

True-MoX 2.4 SMA — mounted view
zoom_out_map
chevron_left chevron_right

True-MoX 2.4 - SMA

TrueRC True-MoX 2.4 SMA — a moxon antenna redesigned using 3D electromagnetic simulation and RF-rated PCB material. Patent pending design minimizes body interaction. 5.9 dBi gain, 156° beam. For IRC Ghost, TBS Tracer or ExpressLRS.

  • SMA

$14.99

14.99 Tax excluded

check In stock
True-MoX 2.4 SMA — mounted view
True-MoX 2.4 - SMA View all variants
14.99 Tax excl.
check In stock
Description

The True-MoX 2.4 is TrueRC's revision of the moxon using the latest 3D electromagnetic simulation tools and RF-rated PCB material. Interactions with radio or pilot's body are kept near zero thanks to the patent pending design. Great for IRC Ghost, TBS Tracer (RP-SMA) or ExpressLRS (SMA).

Note: This is not a patch antenna — do not point the flat part toward the target. Point the long edge of the panel toward the intended flight area. Having the long edge vertical produces vertical polarization.

Specifications
  • Frequencies: 2400–2510MHz
  • Gain: 5.9 dBi
  • Beam-width*: 156°
  • Beam-width @-3dB**: 133°
  • Connector: SMA
  • Dimensions: 39.5mm × 100mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597253733
0608597253733
Frequency (GHz)
2.4
Type of polarization
Linear polarization
Connector
SMA
