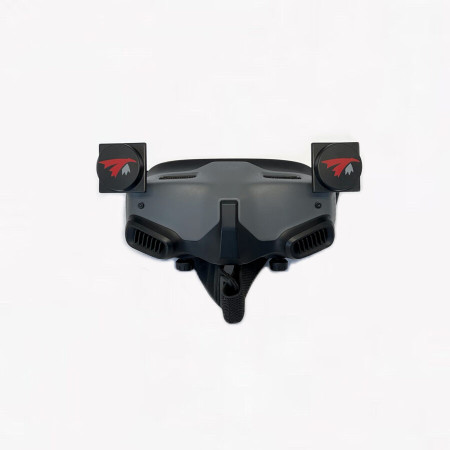

Line-Air 5.8 MK II for DJI Goggles 2 — installed view
zoom_out_map
chevron_left chevron_right

Line-Air 5.8 MK II pair for DJI GOGGLES 2

TrueRC Line-Air 5.8 MK II pair for DJI Goggles 2. Same format as the X-AIR but linearly polarized (+/−45° cross-polarized pair) for polarization diversity. Drop-in fit, 9–10 dBi gain. Matches O3 stock linear antennas.

$62.99

62.99 Tax excluded

new_releases On backorder
Line-Air 5.8 MK II for DJI Goggles 2 — installed view
Line-Air 5.8 MK II pair for DJI GOGGLES 2
62.99 Tax excl.
new_releases On backorder
Description

The Line-Air 5.8 MK II pair for DJI Goggles 2 uses the same compact format as the X-AIR but in a linear polarized flavor. The pair is cross-polarized (+/−45°) for polarization diversity. Simply pull out the stock antennas and push the Line-Air in — factory fit on DJI Goggles 2. Excellent match for O3 stock antennas or when using linear air unit antennas.

Specifications
  • Bandwidth: 5.5GHz–6.7GHz
  • Gain: 9–10 dBi
  • Polarization: Linear (+/−45° slanted cross-polarized pair)
  • Beam-width*: 120°
  • Beam-width @-3dB**: 68°
  • Connector: MCX male
  • Dimensions: 34mm × 34mm × 24mm
  • Weight: [À COMPLÉTER]

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Data sheet
0608597256352
0608597256352
Frequency (GHz)
5.8
Type of polarization
Linear polarization
Compatibilities
DJI FPV G2
