$62.99
chevron_left
chevron_right

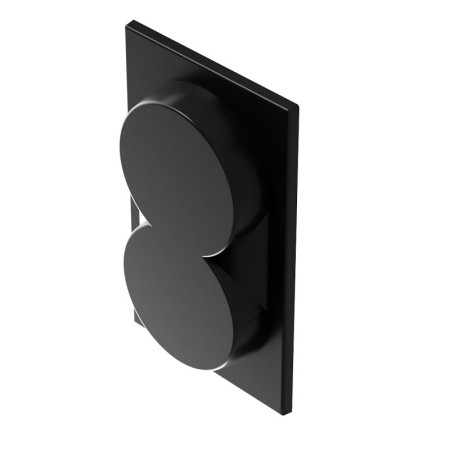

X²-AIR 5
TrueRC X²-AIR 5 — a high-performance circular polarized directional antenna covering an impressive 2GHz bandwidth (4.3–6.3GHz). 14 dBic gain at 5.8GHz with a 70° horizontal beam. Lightweight at only 36g.
Description
TrueRC X²-AIR 5 is a high-performance circular polarized directional antenna covering an impressive 2GHz bandwidth. Featuring an oversized reflector in a lightweight package, it delivers excellent gain and sector-type beam over the 4.3–6.3GHz range. Ideal for long-range FPV, UAV control links, and any application requiring wide-band high-gain CP performance.
Specifications
- Frequency: 4.3–6.3GHz
- Gain @5.8GHz: 14 dBic
- Gain @5GHz: 11.5 dBic
- Polarization: RHCP or LHCP
- Horizontal beam @-3dB: 70°
- Vertical beam @-3dB: 30°
- Connector: SMA
- Dimensions: 114.1mm × 69.6mm × 27.7mm
- Weight: 36g
Data sheet
0608597256260
0608597256260
- Frequency (GHz)
- 5
5.8 - Type of polarization
- Circular polarization
- Connector
- SMA
