X-AIR 5 - SMA

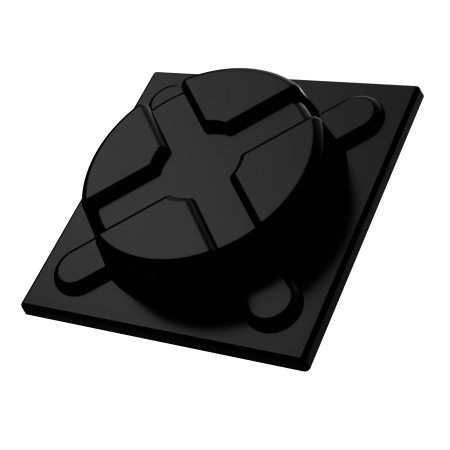

X-AIR 5 — 4300–6000 MHz Wideband CP Directional Antenna

The X-AIR 5 is a high-performance circularly polarized directional antenna. It gives extended range and reliable signal strength across a relatively wide area. Its high gain and directional focus give it excellent performance in long-range links where interference must be kept to a minimum.

A single compact, lightweight antenna covers 4300 to 6000 MHz with wide SWR, gain and axial-ratio bandwidth. That suits it to long-range FPV, UAV control and data links, and other communication and remote-control applications. Connector options can be customized, so it integrates easily into different setups.

Product highlights

• Compact size: 69 × 69 × 23 mm
• High efficiency
• Wide SWR, gain and axial-ratio bandwidth (4300–6000 MHz)

Specifications

• Frequency range: 4300–6000 MHz
• Bandwidth: 1700 MHz
• Max gain: 11.5 dBi
• Polarization: RHCP or LHCP
• Axial ratio (within main beam): 1.7 dB
• Pattern: Directional
• Beamwidth: 65° horizontal (AZ) / 65° vertical (EL)
• Impedance: 50 Ω
• Max SWR: 1.5:1
• Max S11: −13 dB
• DC: Open
• Connector: SMA
• Dimensions: 69 mm × 69 mm × 23 mm
